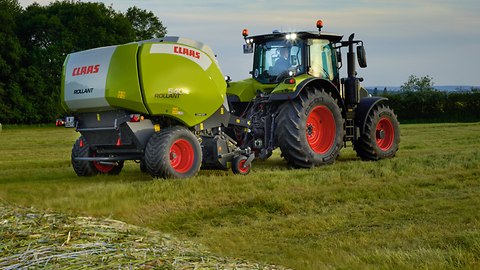

ROLLANT 540 RF / RC / RC COMFORT.

The best way to collect the harvest?
As a team.

High forage yield is essential for a good operating result. That is why CLAAS has developed a new fixed-chamber baler with a 1.22 x 1.25 m bale size.

ROLLANT 540 RF / RC / RC COMFORT.

The best way to collect the harvest?
As a team.

High forage yield is essential for a good operating result. That is why CLAAS has developed a new fixed-chamber baler with a 1.22 x 1.25 m bale size.

CLAAS round balers | ROLLANT 540.

The CLAAS ROLLANT is the world’s top-selling fixed chamber baler. Its proven, robust fixed-chamber concept is continually being enhanced by CLAAS engineers. The ROLLANT 540 features the latest generation of rollers with 15 reinforced rollers, 50-mm drive stubs and extra-robust ball bearings for perfectly formed silage bales and optimum crop flow.


ROLLANT 540

Crop flow.

A good attacking forward takes every opportunity.

  • 2.10-m working width
  • Cam-controlled pick-up for optimum crop flow
  • Higher performance with forward-mounted roller crop press or double roller crop press (optional equipment)
  • Better bale shape, thanks to generously dimensioned intake augers

ROLLANT 540

When endurance matters:

ROTO CUT Heavy Duty.

Tough job to be done? Bring it on! The Heavy Duty drive concept in the ROLLANT makes these machines ideal for tough working conditions in silage. This is because of the 8-mm-thick, four-star dual tines, the ultra-robust individual blade protection and very robust knife bracket. Cutting quality therefore remains excellent even in silage.

What makes ROTO CUT HD so effective:

  • ROTO CUT 8-mm tine stars
  • Reinforced individual blade protection
  • Reinforced Tsubaki chains (main drive and rotor drive)
  • Standard or HD knives
  • 44 mm or 70 mm length of cut

Bale chamber.

MAXIMUM PRESSURE SYSTEM II for the ROLLANT 540.

  • 3-roller segment with two large, adjustable springs
  • Excellent value for money for denser bales
  • Softer or harder bales as needed
  • Perfect bale shape even in difficult conditions

New concept: Fewer rollers for more weight.

The new generation of the ROLLANT has been designed with the new 15-roller concept. Supported by the powerful hydraulics system, the reinforced rollers provide an optimum bale shape and high bale density – for first-class forage quality.


ROLLANT 520

Bale chamber.

High pressure with particularly robust steel rollers.

For quality forage, crops need to be compacted quickly into high-density bales. In the ROLLANT, this is done with highly robust steel rollers with profile webs, which ensure an active crop feed. As a result, the crop is pressed into firm, round bales with excellent shape retention even in damp conditions. All bearings and drive shafts are designed for this baler’s high power and throughput.

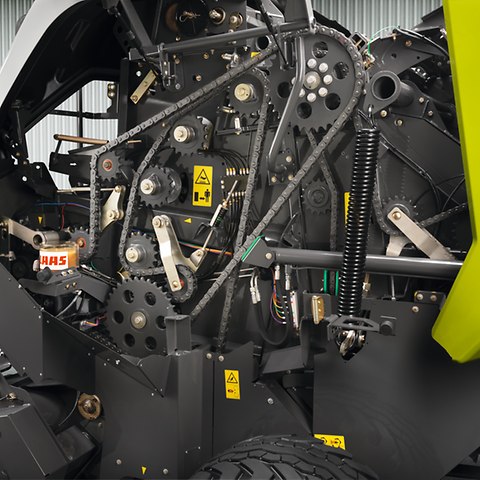

CLAAS Heavy Duty:

Making light of hard work.

Balers in the ROLLANT range come equipped with the Heavy Duty drive line, meaning that the main transmission, drive chains and cutting system, including knives and knife guards, are designed for the toughest conditions and heaviest loads.

Specifications

ROLLANT 540 RC COMFORT

540 RC

540 RF*

Bale dimensions 1.22 x 1.25 m

Cam controlled pick-up with width of 2.10 m

PRO: hydropneumatic suspension in the cutting frame as an early warning system

Bale chamber with 15 new HD baling rollers

50-mm drive stubs

□ Available

*not available in Germany

399145_27

Ergonomic CEMIS 700 control terminal.

  • New terminal with convenient user navigation and touchscreen
  • 7” display with very high resolution
  • Two camera inputs

Constant chain lubrication.

The new distribution units in the 6.3-litre lubricator supply each individual chain with exactly the amount of oil needed for long and smooth-running operation. You can save on cash, in addition to saving valuable maintenance time.

Central lubrication of the tailgate bearings for the ROLLANT 540.

The various grease nipples for the tailgate and MPS are easily accessible from the right side of the machine at a convenient height.

The lubrication intervals can be set directly on the terminal to ensure that the bearings are automatically lubricated as required.

ROLLANT 540
Download > RGB (790KB)  |  CMYK (60.9MB)
Close

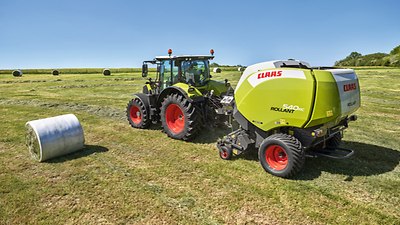

ROLLANT 540 ARION 660-510 500
